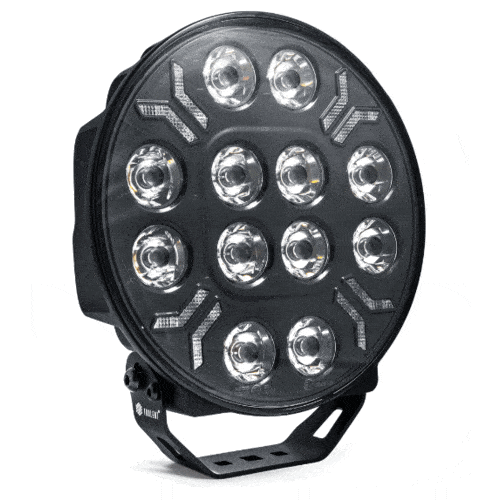

LED Ypsilon 12LED amber-white with warning light 8000lm - 3m cable | WD-12080.1

SKU WD-12080.1
Prix

2,00 €

The TRALERT® LED driving light from the Ypsilon serie is designed for professional applications where a powerful and versatile light image is required. This LED driving light features a Driving Beam light pattern and delivers a light output of 8,000 lm at a voltage range of 9-36 V. The duo-colour driving lights in amber and white ensure visibility under various conditions, complemented by an integrated warning light function. The sturdy aluminium housing and impact-resistant polycarbonate lens ensure protection in demanding environments. Thanks to its IP68 rating, this LED driving light is completely dust- and waterproof. Surface mounting and a 330 cm long cable with 6-PIN Deutsch connector allow for easy installation. The Ypsilon serie is certified according to CE, ECE R10, ECE R148 and ECE R149. Plus points of this series: - Unique design - Equipped with warning light functions - Duo-colour position lights - Sealed connectors.

Quantité

Specifications (Eigenschappen):

  • Whole series: Ypsilon serie
  • Dimensions: ø214 x 71mm
  • Lumen: 7800 lumens
  • Warranties: 3 years
  • Brand: TRALERT®
  • Light image: Driving Beam
  • Light colour: Amber, white
  • Warning light function: Flashing
  • Connectors: 6-PIN Deutsch connector
  • Filter connectors: Deutsch connector
  • Cable length: 330cm cable
  • Cable length filter: 300cm+
  • Voltage: 9-36v
  • Voltage filter: 12-24v
  • Wattage filter: 101 - 150 Watt
  • Wattage: 120 Watt
  • Lumen filter: 5001 -10000 lumens
  • Flash patterns: 4
  • Pattern type: Flashing
  • Shape: Round
  • Housing material: Aluminium
  • Light range: 10 lux@ 130m / 1 lux@ 490m
  • Protection class: IP68
  • Power consumption: 12 Volt / 10A - 24 Volt / 5A
  • Housing colour: Black
  • lens material: Polycarbonate
  • Certification: CE, ECE-R10, ECE-R148, ECE-R149
  • Lens colour: Transparent
  • Height incl. bracket: 237mm
  • Mounting: Surface mounting
  • Warning light functions: Yes
  • Position lights: Yes
  • White position lights: Yes
  • Amber position lights: Yes
  • Alternative for: Ledson Pollux 9+
  • Width: 214mm
  • Width filter: 201-250mm
  • Height: 214mm
  • Height filter: 201-250mm
  • Depth: 71mm
  • Depth filter: 71-80mm
  • Reference number: 30
  • Driving lights functions: Amber position lights, Warning light functions, White position lights
  • Suitable for trucks: Yes
  • Suitable for:: Trucks
  • Number of LEDs: 34x Osram LEDs
  • Weight: 2, 534 kg
  • Suitable for commercial vehicles: Yes
  • Suitable for 4x4: Yes
  • SKU: WD-12080.1
